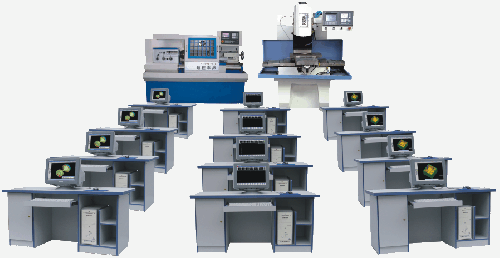

NC mechatronics laboratory processing networks (teaching, the production of dual-use type)
6140 type (teaching / production of dual-use type) CNC lathe
(Teaching / production of dual-use type) CNC lathe
CNC lathe used electromechanical integration design, pleasing in appearance, rational structure, a wide range of uses, is easy to operate.
The machine can achieve automatic control, and a variety of spare parts to complete the internal and external turning round, face, cut trough, arbitrary cone, sphere and the public, the British thread, the thread taper processes. Also equipped with a comprehensive S. T. M features to send and receive multiple signals, automatic process control. Bed rails of the machine tools used Super Audio quenching meters process, wearability strong, and maintain good accuracy; spindle system architecture advanced, rotary high precision, and good anti-vibration, high cutting performance; vertical and horizontal transmission using Ball Screw; excellent dynamic response, low noise unit.
The machine for large, medium and small volume, multi-species, multi-turn machining parts specifications have a stronger ability to adapt, especially the conical surface processing, and other special ball-shaped parts more demonstrated its high efficiency and quality of the advantages of stability and reliability.
CNC lathe used electromechanical integration design, pleasing in appearance, rational structure, a wide range of uses, is easy to operate.
The machine can achieve automatic control, and a variety of spare parts to complete the internal and external turning round, face, cut trough, arbitrary cone, sphere and the public, the British thread, the thread taper processes. Also equipped with a comprehensive S. T. M features to send and receive multiple signals, automatic process control. Bed rails of the machine tools used Super Audio quenching meters process, wearability strong, and maintain good accuracy; spindle system architecture advanced, rotary high precision, and good anti-vibration, high cutting performance; vertical and horizontal transmission using Ball Screw; excellent dynamic response, low noise unit.
The machine for large, medium and small volume, multi-species, multi-turn machining parts specifications have a stronger ability to adapt, especially the conical surface processing, and other special ball-shaped parts more demonstrated its high efficiency and quality of the advantages of stability and reliability.

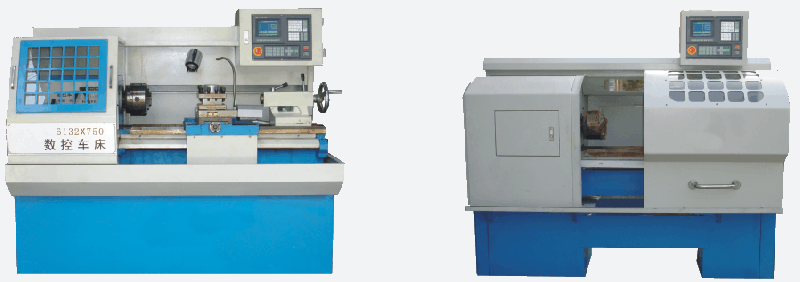

6132 - (teaching / production of dual-use type) CNC lathe 6140 type (teaching / production of dual-use type) CNC lathe
6132 - (teaching / production of dual-use type) CNC lathe
6132 - (teaching / production of dual-use type) CNC lathe
Technical parameters
The largest bed on the workpiece rotary diameter 320
The length of 750 mm maximum workpiece
The scope of 100-1600 rpm spindle speed
Spindle cone KONG Ying's 6 #
Electric Tool 4-Position
X-axis rapid feed 3000mm/min
Z-axis rapid feed 6000mm/min
X-axis positioning accuracy of ± 0.01mm
Z-axis positioning accuracy of ± 0.02mm
The main motor power 3/4.5kw
Cooling pump power of 0.09 kw
Machine net weight of 1,300 KG
Machine external dimensions (length x width x height) 1890 × 1060 × 1460mm
The largest bed on the workpiece rotary diameter 320
The length of 750 mm maximum workpiece
The scope of 100-1600 rpm spindle speed
Spindle cone KONG Ying's 6 #
Electric Tool 4-Position
X-axis rapid feed 3000mm/min
Z-axis rapid feed 6000mm/min
X-axis positioning accuracy of ± 0.01mm
Z-axis positioning accuracy of ± 0.02mm
The main motor power 3/4.5kw
Cooling pump power of 0.09 kw
Machine net weight of 1,300 KG
Machine external dimensions (length x width x height) 1890 × 1060 × 1460mm
6140 type (teaching / production of dual-use type) CNC lathe
The largest bed on the workpiece rotary diameter 450
The length of 750 mm maximum workpiece
The scope of 100-1600 rpm spindle speed
Spindle cone KONG Ying's 6 #
Electric Tool 4-Position
X-axis rapid feed 3000mm/min
Z-axis rapid feed 6000mm/min
X-axis positioning accuracy of ± 0.01mm
Z-axis positioning accuracy of ± 0.02mm
The main motor power 3/4.5kw
Cooling pump power of 0.09 kw
Machine net weight of 1400 KG
Machine external dimensions (length x width x height) 1890 × 1060 × 1460mm
The length of 750 mm maximum workpiece
The scope of 100-1600 rpm spindle speed
Spindle cone KONG Ying's 6 #
Electric Tool 4-Position
X-axis rapid feed 3000mm/min
Z-axis rapid feed 6000mm/min
X-axis positioning accuracy of ± 0.01mm
Z-axis positioning accuracy of ± 0.02mm
The main motor power 3/4.5kw
Cooling pump power of 0.09 kw
Machine net weight of 1400 KG
Machine external dimensions (length x width x height) 1890 × 1060 × 1460mm
Teaching the production of dual-use CNC Milling Machine
240 teaching production of dual-use CNC milling machine XK125 teaching production of dual-use CNC Milling Machine
240 teaching production of dual-use CNC milling machine
240 teaching production of dual-use CNC milling machine
Workstations area of 400 × 2400mm
T-slot 12
Table largest load-bearing 30 Kg
The itinerary 400 mm X
The itinerary 200 mm Y
Z to the itinerary 250 mm
X to the fast-moving pace of stepping: 3 m / min Servo: 6 m / min
Y to the fast-moving pace of stepping: 3 m / min Servo: 6 m / min
Z to the fast-moving pace of stepping: 3 m / min Servo: 6 m / min
Spindle motor power 0.55 Kw
End table to work spindle distance 15-215 mm
Maximum speed 6,000 rpm spindle
Selection Tool diameter of 6 mm
Positioning accuracy of 0.02 mm
Repeat positioning accuracy of 0.005 mm
NC system for 3-axis control shaft
Machine tool dimensions 1120 × 1170 × 1500mm
Weight 900Kg
XK125 teaching production of dual-use CNC Milling Machine
T-slot 12
Table largest load-bearing 30 Kg
The itinerary 400 mm X
The itinerary 200 mm Y
Z to the itinerary 250 mm
X to the fast-moving pace of stepping: 3 m / min Servo: 6 m / min
Y to the fast-moving pace of stepping: 3 m / min Servo: 6 m / min
Z to the fast-moving pace of stepping: 3 m / min Servo: 6 m / min
Spindle motor power 0.55 Kw
End table to work spindle distance 15-215 mm
Maximum speed 6,000 rpm spindle
Selection Tool diameter of 6 mm
Positioning accuracy of 0.02 mm
Repeat positioning accuracy of 0.005 mm
NC system for 3-axis control shaft
Machine tool dimensions 1120 × 1170 × 1500mm
Weight 900Kg
XK125 teaching production of dual-use CNC Milling Machine
Spindle Hole taper Bt30
The scope of 145-3000 rpm spindle speed (stepless speed regulation)
The main motor power of 1.5 KW
Table area (length x width) 840 mm × 250 mm
Table III to the itinerary (X, Y, Z) 480mm × 250mm × 250mm
Spindle End to workstations from 100-350
Workstations allow maximum loading of 150 kg
Milling feed speed range (Three) (12-2000) mm / min
Three stepper motor torque 12 Nm
The smallest unit 0.005 mm set
Positioning accuracy + -0.02 mm/300mm
Repeat positioning accuracy 0.01 mm
ISO mode programming code, keyboard input, editing background
Control spindle axis few triaxial + Frequency Control
Three joint axis linkage few triaxial
Parts procedures capacity 56K (about 3,000 of the procedures)
Appearance size (length x width x height) 1200 mm × 900mm × 1410mm
Weight 650kg
The scope of 145-3000 rpm spindle speed (stepless speed regulation)
The main motor power of 1.5 KW
Table area (length x width) 840 mm × 250 mm
Table III to the itinerary (X, Y, Z) 480mm × 250mm × 250mm
Spindle End to workstations from 100-350
Workstations allow maximum loading of 150 kg
Milling feed speed range (Three) (12-2000) mm / min
Three stepper motor torque 12 Nm
The smallest unit 0.005 mm set
Positioning accuracy + -0.02 mm/300mm
Repeat positioning accuracy 0.01 mm
ISO mode programming code, keyboard input, editing background
Control spindle axis few triaxial + Frequency Control
Three joint axis linkage few triaxial
Parts procedures capacity 56K (about 3,000 of the procedures)
Appearance size (length x width x height) 1200 mm × 900mm × 1410mm
Weight 650kg
Laboratory Software features:
1, the laboratory software platform WIN98/WIN2000/WINXP, display screen resolution of the use of 1024 × 768, CPU frequency 1.0G or more memory 32M or more.
2, the sub-server software (teachers division) and end-customers (for students) - from teachers to students to achieve operational management whether landing.
3, the simulation software at CNC Milling Machine CNC lathe with two software. The computer on board free switching operation. Chinese menu-control interface can reduce the difficulty of training, the training of personnel to shorten the time and reduce training costs.
4, CNC lathe laboratory also uses the Chinese version, the Chinese version of milling machine CAD / CAM software for graphics software, automatic programming.
5, a standard software architecture for the X86-compatible hardware platforms, operating in different scene, a flexible configuration system to meet the users of performance, cost, installation, use of the environment, and many other requirements. A series of DOS or Windows operating system software platform, the software foundation with rich and full of potential escalation.
6, compatible with a variety of domestic and foreign CNC system control procedures procedures format, and can directly receive MASTERCAM, Cimatron, Pro / E, UG, and other CAD / CAM software generated control procedures.
7, a graphic tracking capabilities, rotation, zooming function of the programming window, the program will enable users in procedures at the same time observed that path. After the end of the Programmers can also use fast graphics simulation functional verification tool running track.
8, support NetBEUI protocol, IPX / SPX protocols and TCP / IP protocol, through network transmission control procedures or remote control.
9, CNC lathes, machining centers for machine tool with teachers, students of communication used 10/100M LAN communications. The full realization of the laboratory network management.
10, multimedia educational software, including black screen quiet, teachers broadcasting teaching, teachers document of the monitor screen, the two dialogue, multilateral discussions, electronic pointer, electronics show of hands, locking students machine, team management, remote shutdown of the network, such as video streaming teaching.
Laboratory features:
1, computer configuration: C4-2.13G, memory 256M, drives 40G, 17-inch flat-panel monitors, fashion powder roast chassis, the ultra-thin keyboard, 3D mouse, 52 2x CD-ROM, and other components or Tsinghua Tongfang.
2, the laboratory cars / milling machining center simulation software in a computer, operate, and then process through TCP / IP protocol to send CNC lathe or milling machining center to the actual processing.
3, the use of network-based multimedia software Broadcasting Teaching: If teachers in teachers plane 3D surface modeling, each of the steps in all students can be directly crew watched students learning. If the teacher a paper document of the functions available through one-time distributed to all students.
4, the passage of this laboratory study allows students to understand the present mainstream CNC Machining Center Machine Tool Principle and the work of the CNC lathe turning principle.
Lathes, CNC milling machine software system:
Branch-NC system in high-performance systems based on the NC to meet the vast number of institutions, such as vocational secondary technical school of NC teaching, programming, simulation and integrated development of the PC-based CNC system. The system can be realized Nano interpolation, high-speed interpolation. Widely used in various types of CNC lathes, CNC milling machine, CNC boring machine, carving machine, copying machine tool.
-- The PC-based CNC system, advanced open architecture using P4 computer control, high reliability.
◆ The 15 and 17 Samsung LCD and Samsung flat-panel monitors, Resolution for 1024 × 768. Chinese characters menu.
On a multifunctional function: can always switch to the Windows platform for the operation of various software used. If CAD / CAM modeling.
◆ various forms of graphical display and processing trajectory simulation at the same time can be a one-paragraph directive programming and simulation operation.
◆ massive procedures processing capacity can be directly processed as much as 2GB of G code procedures.
◆ advanced small segment continuous processing functions, particularly suited to CAD / CAM design of complex mold parts processing.
◆ system uses innovative "instant Participation" technology, built-in Chinese online manuals. Manual content users can self-designed, user-friendly.
◆ FUANC compatible NC system and the various domestic and international control procedures format. And direct reception Mastercam, Cimatron, CAXA, Pro / E, UG, and other CAD / CAM software generated control procedures.
◆ tracking capabilities with graphical programming window function, users in programming at the same time observed that the tool path. Graphics can be no level scaling, translation.
◆ interpolation methods: straight line, arc, thread, spiral line, spline curve.
◆ control axes: two-axis; diameter, radius programming; pulse equivalent: 0.000001 - 10mm arbitrary regulation; reverse clearance compensation.
Support for 3.5-inch disk drives copy control procedures; support NetBEUI protocols and TCP / IP protocol through the Ethernet interface card, easily machine networking.
